This Brake coach body assembly is the third of three styles that use the common underframe uploaded 27/05/2025.
Glazing slots are provided for fitting glazing film (typically 0.25mm laminating pouches).
The coach roof is held to the body by printed retainers holding captive m3 nuts and countersunk screws.
An isometric assembly drawing and item list is provided.
The body assemblies are fastened to the underframe with 6 M3x16 countersunk screws.

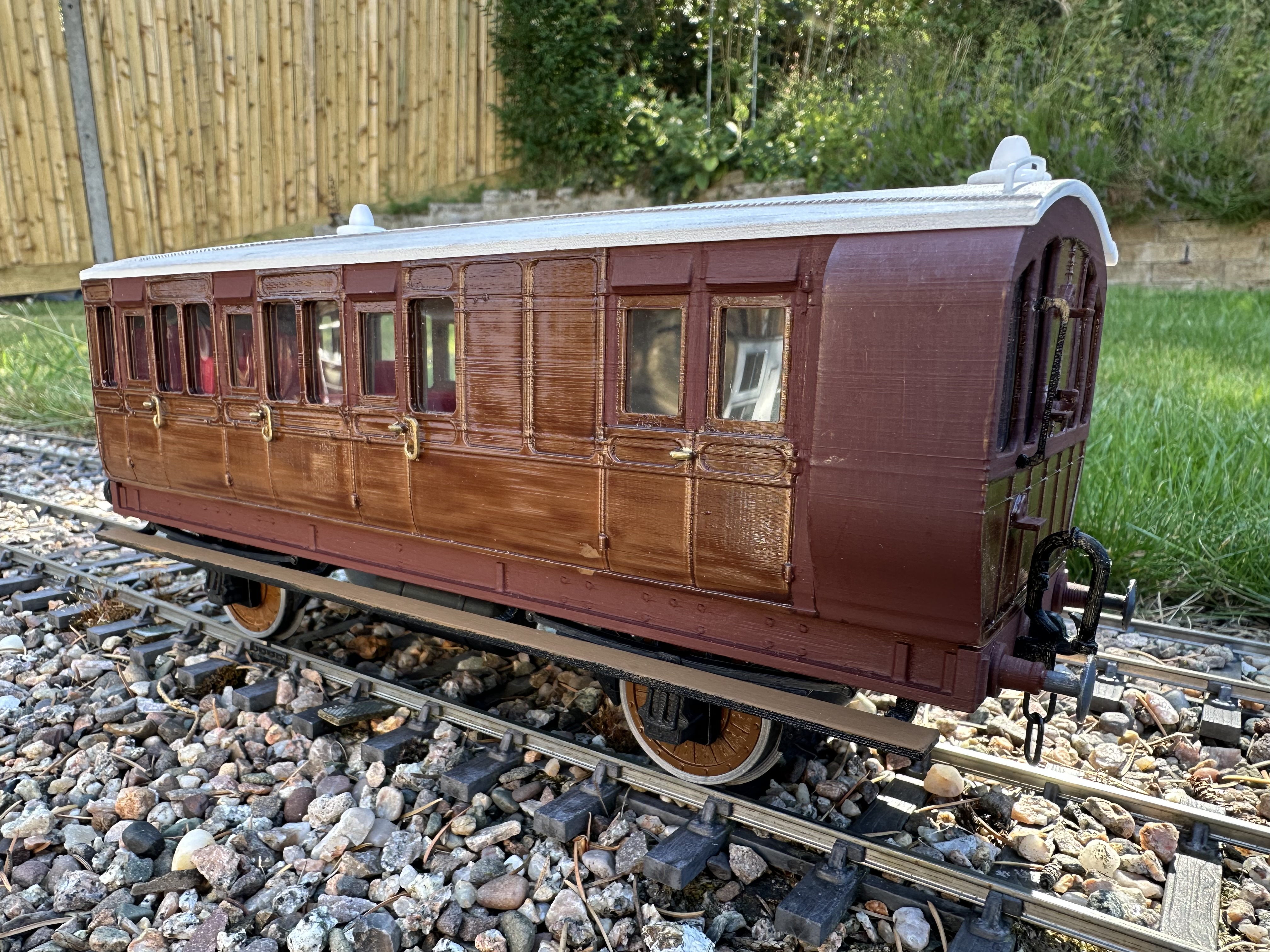

Brake / third class coach

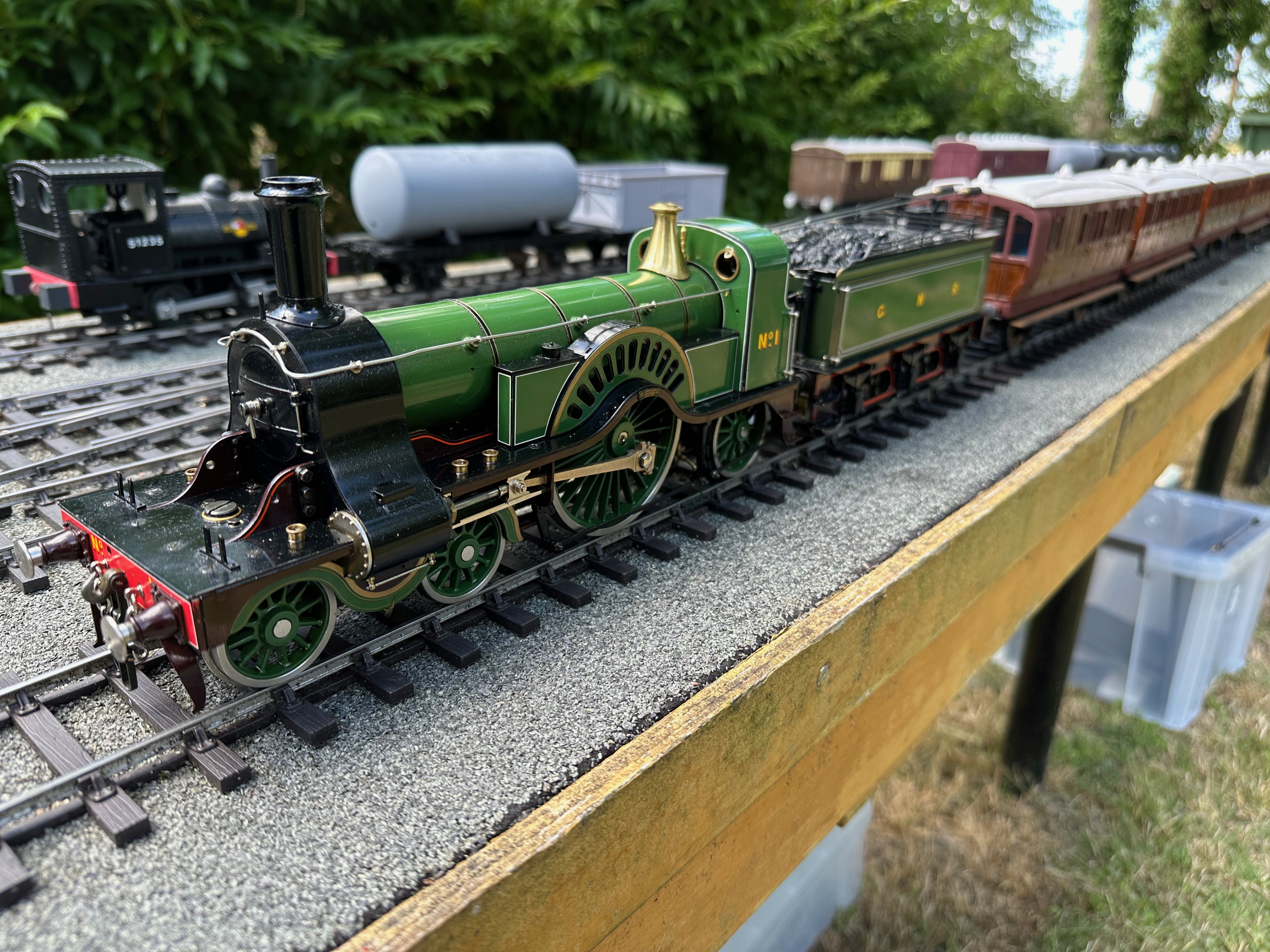

Taken at Norman Millier's Track
Documents
Document
Isometric assembly drawing with item list
Models
3D Model
Print on end, no support needed
3D Model
Print on end. No support needed.
3D Model
2 required, fit M3 nuts in lower end holes
3D Model
Divides seated compartment from brake end
3D Model
contains printed M3 thread (clean with tap if necessary)
3D Model
fit M3 nut in lower hole
3D Model
Original was printed as a pair on long edge. (pair joined at ends with sacrificial joiners to minimise warping)
3D Model
Best printed on base. Fit M3 nuts in cavities for underframe attachment.
3D Model
Print flat. No support needed.
3D Model
print flat no support required, fit M3 nuts in lower feet
