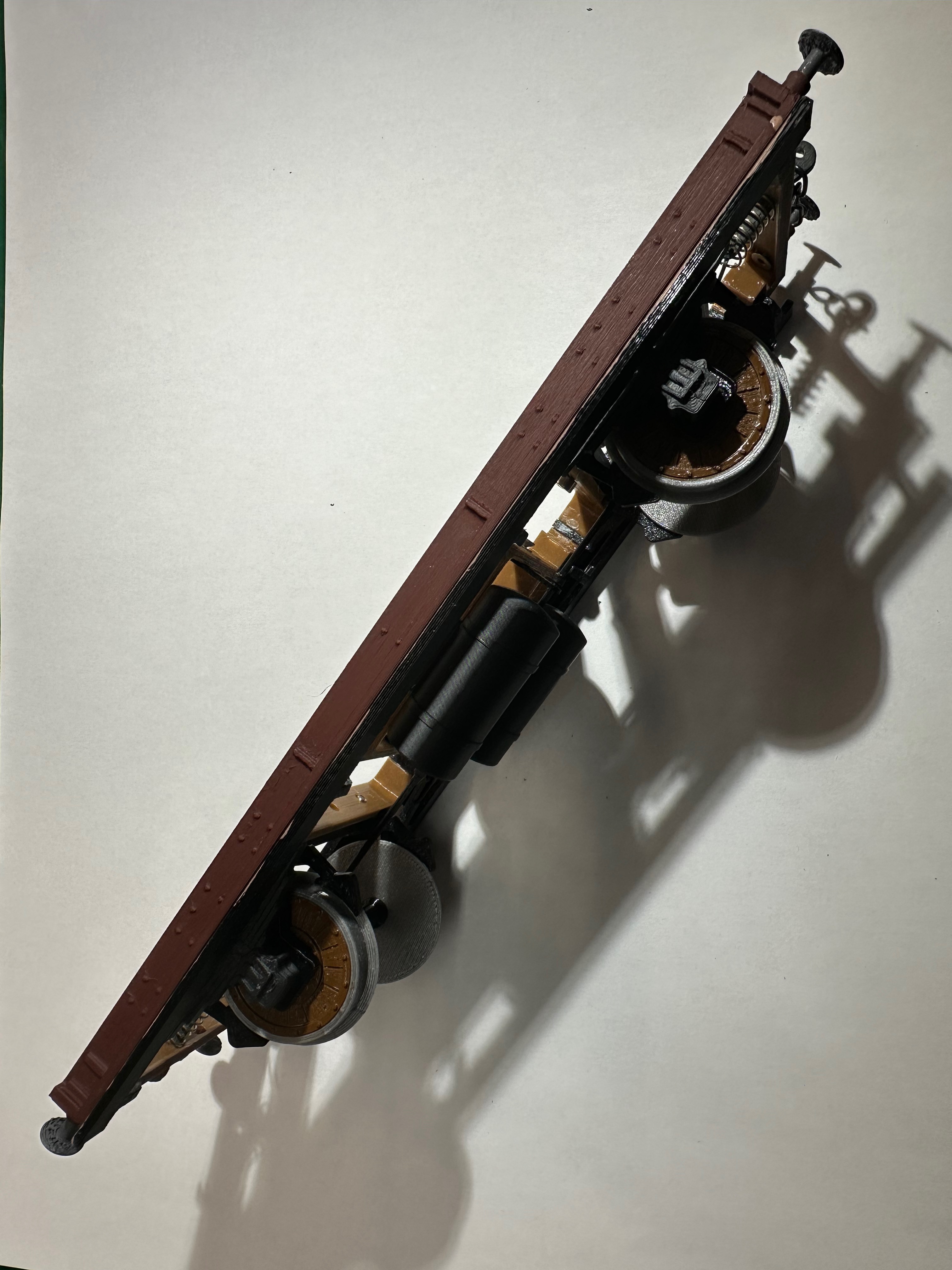

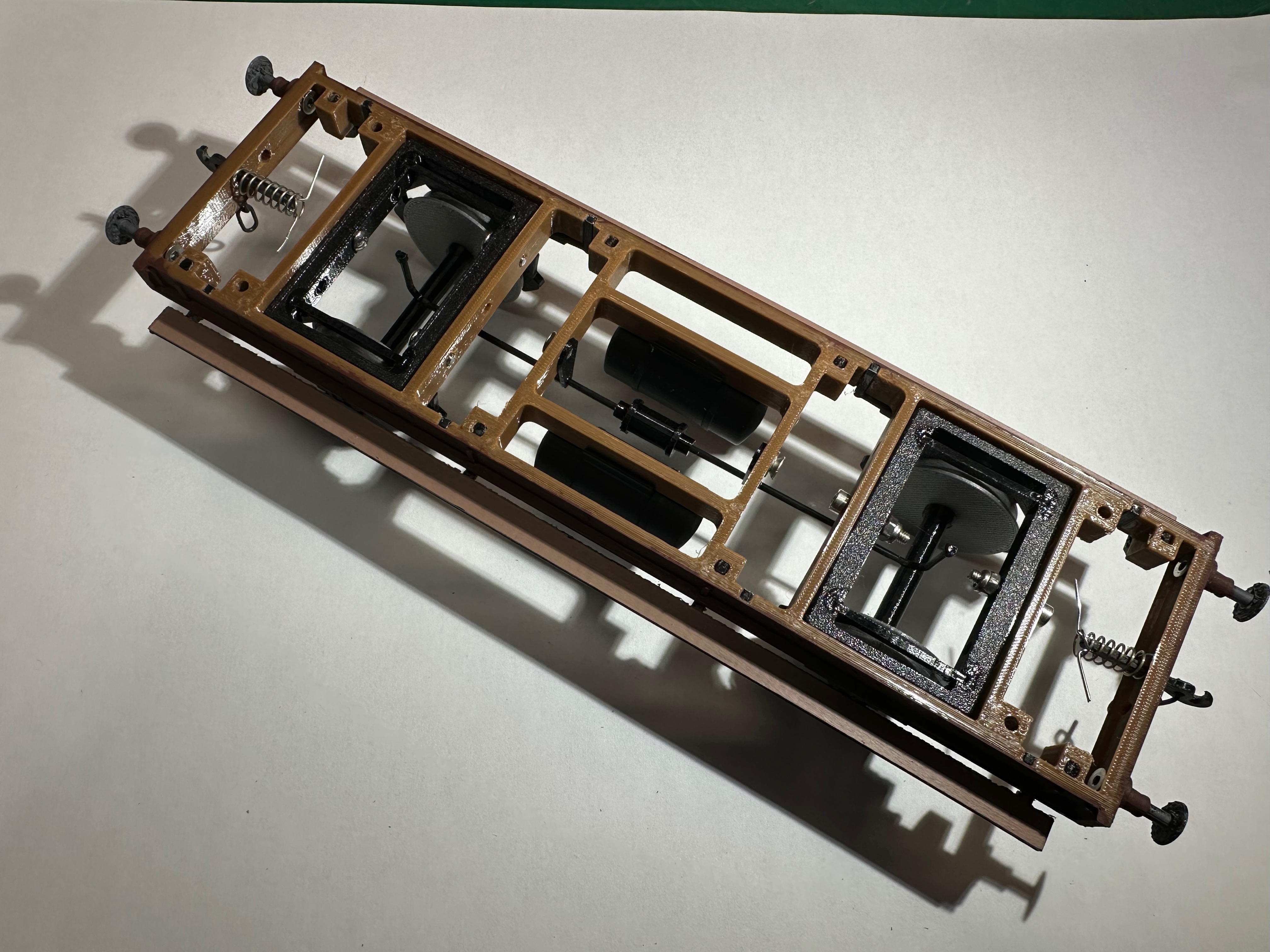

This underframe was designed as a common item for a set of three GNR 4 wheel coaches.
The coaches comprising 1st class and 3rd class saloons and a 3rd class saloon/brake.
The inspiration for these models was a set of coaches produced in OO gauge by Hornby. These coaches are not claimed to be highly accurate to any particular prototype. The object was to produce low cost models that look in keeping with the Aster Stirling Single 1/32nd scale live steam locomotive.
The underframe is my first release. The three body shells will be released to follow during 2025.
Documents
Document
Underframe assembly document
Document
Body images
Document
This is an updated assembly. Changes are: (1). Correction of Qty for item 10 from 3 to 2. (2). Addition of items 21 (coupling washer) and 22 (Brake Pipes). The new items are also added as .3mf model files. The original issue A, assembly file is removed.
Models
3D Model
3D Model
3D Model
3D Model
3D Model
3D Model
3D Model
Updated file removing obsolete drawing pin body
3D Model
3D Model
3D Model
3D Model
3D Model
3D Model
2 required, joined to cylinder centre with M3 stud(s) or grub screw(s)
3D Model
This washer aids locating the cross pin behind a spring on the coupling hook.
3D Model
Model of vacuum brake pipe. Best printed on its flatter side in flexible material (TPU) for robustness when fitted to under frame.
3D Model
Join to cylinder ends with m3 stud(s) or grub screw(s)
